customized horizontal high flow filter housing

[Return Home] [Go Back]

customized  horizontal high flow filter housing

Product Abstract:

customized horizontal high flow filter housing
1.18 Years OEM manufacturer for customized horizontal high flow filter housing with high quality
2.ASME standard with U stamped customized horizontal high flow filter housing and OEM is acceptable
3.Stainless steel 304/316L customized horizontal high flow filter housing for Industry water treatment System.


Product Description

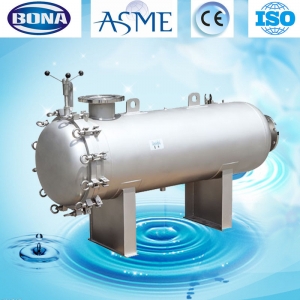

1.The Description of customized  horizontal high flow filter housing

The BONA  WATER High Flow Rate single and multiple cartridge filter housings
have been designed specifically with high throughputs in mind whilst
occupying a small “footprint” area. These housings can be used in
both the horizontal and vertical orientation depending on the availability of space. The standard model is horizontal. The in-line horizontally mounted housing minimises pressure drop and is also more accessible.

BONA WATER Industry's High Flow Rate Cartridge Filter Housings Horizontal effectively remove dirt, pipe scale and other substances from process liquids. Our dependable, long-lasting steel housings are available in a variety of sizes and O-ring materials to accommodate your chemical compatibility, flow rate and pressure requirements

2. Features of customized  horizontal high flow filter housing
Single and multi cartridge housing available
Designed specifically to complement the HF-PP cartridge
The filters are available in stainless steel 304 or 316L
All components are stainless steel
Eyebolt design option allows for quick and easy change-out
The cover is opened using a davit arm as a standard construction
Fewer filter elements to change-out
Inside to outside flow minimises the possibility of contamination
during cartridge change-out
Guide tubes included for multi cartridge housings
Different housing specifications possible
O-ring sealing: standard in EPDM. Viton®, PTFE encapsulated
Viton® and silicone available on request
The housings are equipped with legs

3.Operation Parameters of customized  horizontal high flow filter housing

 Maximum Operation Pressure: .............150 PSI( 10 Bar)

 Maximum Operation Temperature:........ 250 °F

 Pressure Tolerance on Weld:............... 0.85



4.  Applications of customized  horizontal high flow filter housing

• Potable Water • RO Membrane
• Process Water Cleaning
• Edible Oils • Lubricants
• Pre-RO Membrane Protection • Coolants Protection
• Cutting Oils • Solvents • Process Chemicals

1. Food industry:fine filter of space water, mineral water,beverages, liquor clarification and filtration process;

2. Pharmaceutical industry: sterile water, oral, infusion and injection water treatment;

3. Chemical industry: organic solvents, esters, alcohols, acids, alkalis and other chemicals, oils purification ;

4. Oil industry: oil field water injection preparation and so on ;

5.  Environmental protection, electroplating wastewater, printing waste, pharmaceutical waste and other industrial wastewater treatment;

6. Seawater, brackish water desalination water treatment, hotels, apartments water treatment ;

7. Precision filter is often used as security filter for electrodialysis, ion exchange, security filters reverse osmosis devices

BONA Water at a glance:

 Full Name:Hangzhou Fuyang Bona Water Purification Equipment Co., Ltd

• Founded: 2000

• Registered Office: Fuyang, Hangzhou, Zhejiang,China

• Main Business Activity: Design, Manufacturing of Stainless Steel Filters, Stainless Steel Tanks,Bag and Cartridge filter housings, Reverse Osmosis Membrane housings.

• Quality Managing System: ISO9001:2008,CE, ASME

• Employees: about 120

• Production Area: 20.000 sqm



BONA WATER Factory view of customized  horizontal high flow filter housing



The Exhibition Hall of customized  horizontal high flow filter housing



The 2017 Aquatech Exhibition of customized  horizontal high flow filter housing



The Certification of customized  horizontal high flow filter housing



The half-products in plant of customized  horizontal high flow filter housing



1.Q:Are you a factory or trading company?


   A:Yes, we are a manufacture with designing, manufacturing, marketing and exporting for more than 16 years.And our factory is located in Hangzhou,China. Welcome your coming to visit us!

2.Q:What products does your company offer by yourself?

   A:We are specialized in making stainless steel filter housing, such as mechanical filter housing/pressure filter housing, precision      filter housing/cartridge filter housing/security filter housing/sanitary filter housing, bag filter housing, stainless steel membrane housing, ion exchange filter housing, etc.

3.Q:You accept OEM ? Are customized products accepted?

A:Yes, we can manufacture according to your requirement

We are support any of your innovative idea and also will provide you the filtering scheme for your reference . Bona is your factory!



4.Q:What is the process to place an order ?

A:At first, you tell me which styles of products ( From our website or Send us your product's photos or the artwork ) you will need ? Second, If you need , we will provide you the details too ,as the technical parameters or the artwork for your approval . Third, After ensure the more details about the products ,we will quote you about it ,and if you accept ,PI will would like goes for you . Fourth, You need to make full payment or take 30% payment before production and 70% before shipping

5. Any discount possible if I place an order?



Yes. we have different price ranges (discounts) based on different order quantities. Please contact our sales for detailed price information.

6.How do you usually pack the exported goods?How long is the delivery time ?

  A:We usually use carton, then wooden box with pallet.

Different products and quantities have different procedures and different timing .We may promise that we can try our best to finish all of your orders within the shortest time. For more information, please contact us directly



7.Q: Why choose our company?

   A:

1.16 years experience in water treatment.

2.Excellent cooperation partner

3.Own an excellent technical team

4.Advanced R & D capability.

5.One-stop service.

6.We provide custom-made service.

7.All products will be tested strickly before export

8.We got ASME,CE,ISO9001:2008 certificate



         Cooperative brands

          PENTAIR (IN USA,ASIA,BRAZIL,INDIA,DUBAI)

          PARKER

8.Q:What’s your warranty?

A:Our warranty is 1 year. But normally, our machine can work 5 years before repair.
