BN9 Series High Flow Filter Housing
• 150 psig, High Flow Housings for Use with Multipleat High Flow Cartridges
• Models Available to Accommodate 1 to19 Round Multlipleat High Flow Filter Cartridges Allowing Process Optimization
• Models Available for Use with 20 inch (508mm), 40 inch (1016mm) and 60
inch (1524mm) Multipleat High Flow Cartridges
• 304 and 316 Stainless Steel Materials of Construction are Standard. 316L
Stainless Steel, Carbon Steel and Rubber Lined Versions are Available Upon Request
• Horizontal Orientation Eliminates the Need for a Ladder, Catwalk or Platform to Change-Out Filter Cartridges
• Designed to ASME Code Standards
• Operator Friendly Eyebolt with Davit Arm Design Allows for Quick & Easy Change-Out
• Inside to Outside Flow Minimizes the Possibility of Downstream Contamination During Cartridge Change-Out.

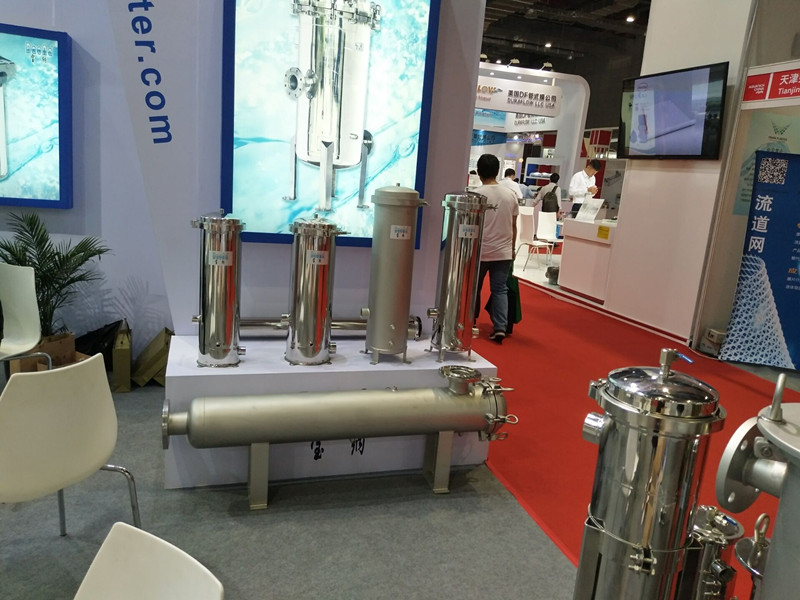

Single High Flow Filter Housing on Aquatech Exhibition

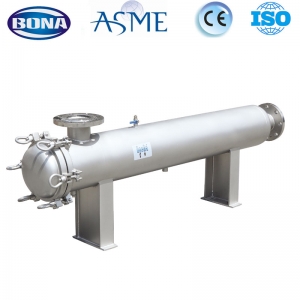

1.The Description of Single High Flow Filter Housing

The BONA  WATER High Flow Rate single and multiple cartridge filter housings
have been designed specifically with high throughputs in mind whilst
occupying a small “footprint” area. These housings can be used in
both the horizontal and vertical orientation depending on the availability of space. The standard model is horizontal. The in-line horizontally mounted housing minimises pressure drop and is also more accessible.

BONA WATER Industry's High Flow Rate Cartridge Filter Housings Horizontal effectively remove dirt, pipe scale and other substances from process liquids. Our dependable, long-lasting steel housings are available in a variety of sizes and O-ring materials to accommodate your chemical compatibility, flow rate and pressure requirements

2. Features of Single High Flow Filter Housing
Single and multi cartridge housing available
Designed specifically to complement the HF-PP cartridge
The filters are available in stainless steel 304 or 316L
All components are stainless steel
Eyebolt design option allows for quick and easy change-out
The cover is opened using a davit arm as a standard construction
Fewer filter elements to change-out
Inside to outside flow minimises the possibility of contamination
during cartridge change-out
Guide tubes included for multi cartridge housings
Different housing specifications possible
O-ring sealing: standard in EPDM. Viton®, PTFE encapsulated
Viton® and silicone available on request
The housings are equipped with legs

 3.Operation Parameters of High Flow Filter Housing

 Maximum Operation Pressure: .............150 PSI( 10 Bar)

 Maximum Operation Temperature:........ 250 °F

 Pressure Tolerance on Weld:............... 0.85

 4.  Applications Single High Flow Filter Housing

• Potable Water • RO Membrane
• Process Water Cleaning
• Edible Oils • Lubricants
• Pre-RO Membrane Protection • Coolants Protection
• Cutting Oils • Solvents • Process Chemicals

1. Food industry:fine filter of space water, mineral water,beverages, liquor clarification and filtration process;

2. Pharmaceutical industry: sterile water, oral, infusion and injection water treatment;

3. Chemical industry: organic solvents, esters, alcohols, acids, alkalis and other chemicals, oils purification ;

4. Oil industry: oil field water injection preparation and so on ;

5.  Environmental protection, electroplating wastewater, printing waste, pharmaceutical waste and other industrial wastewater treatment;

6. Seawater, brackish water desalination water treatment, hotels, apartments water treatment ;

7. Precision filter is often used as security filter for electrodialysis, ion exchange, security filters reverse osmosis devices
