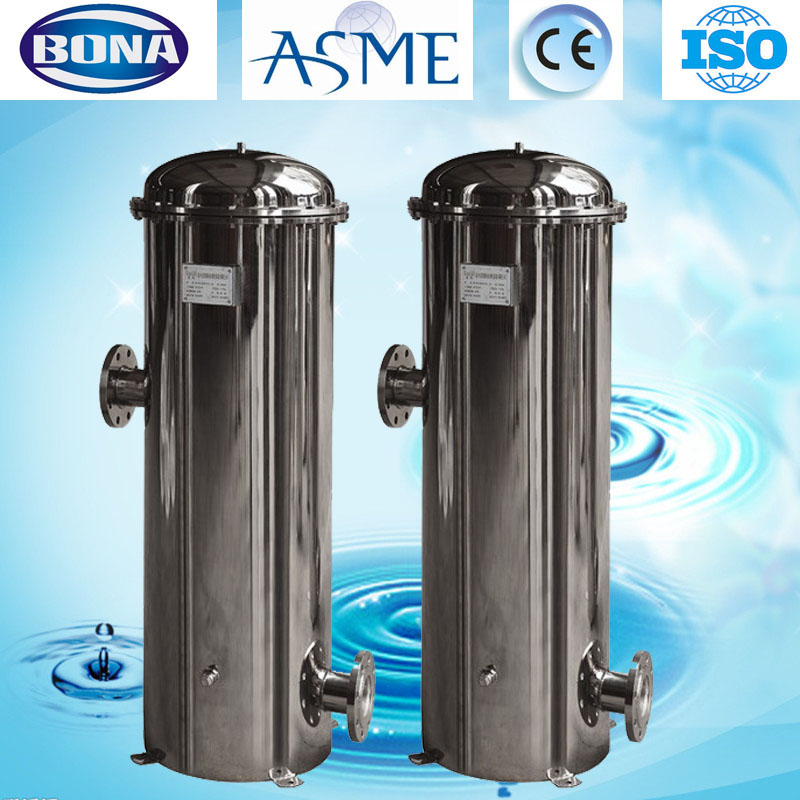

China SS 304 multi media filter housing factory

[Return Home] [Go Back]

China SS 304 multi media filter housing factory

Product Abstract:

China SS 304 multi media filter housing factory
1.18 Years OEM manufacturer for China SS 304 multi media filter housing factory with high quality
2.ASME standard with U stamped China SS 304 multi media filter housing factory and OEM is acceptable
3.Stainless steel 304/316L multi media filter housing factory for Industry water treatment System.


Product Description

The description of China SS 304 multi media filter housing factory

Multi-cartridge Filter Housing are clamp closure designed for industrial grade filtration. These are made of durable SS 304 or 316L.Sandblasted,brushed & electro polished with operating pressure up to 100 psi. They are suitable for RO Plants, Water Treatment Plants, Paints, Waste water recycling, Petrochemicals and Plating Solutions.

Features And Benefits of China SS 304 multi media filter housing factory

 304 & 316L SS Electro polished material of construction for maximum corrosion resistance

 Clamp closure design with 100 psi maximum operating pressure assures secure sealing and easy cartridge change out

 Suitable for high temperature service up to 90 C

 Ideal for : Water, Paints, Photographic solutions, Food & Beverage, Petrochemicals, Pharmaceuticals, Plating solutions

 All models available with vent and drains for easy cartridge change and maintenance

 Accept 3-160 rounds filter cartridge in length of 10”, 20”, 30” or 40” from variety brand

 Accept cartridges with Double Open End (DOE)

 Standard shell O-ring to be Buna-N



Technical parameters for China SS 304 multi media filter housing factory

Working pressure: 0.6 / 1.0 / 1.6Mpa

Body Material: Stainless steel (SUS304, SUS304L, SUS316, SUS316L).

Operating temperature: 5 ~ 40 degree centigrade

Design temperature: 5  -90 degree centigrade

Replace the pressure: 0.05Mpa-0.07MPA

Filter interface: flat compression, plug-in

Cylinder and base connection mode: quick opening, bolt type

Filtration accuracy: 1μm ~ 100μm

Cartridge Quantity: 1 core to 160 cores

Cartridge filter Length: 10 "~ 40"

Seal type: O-ring or flat washer

Surface finish: Sandblast, mirror electrolytic polishing.

Sealing material: nitrile rubber, silicone, Viton, standard configuration for the silicone seal.

Interface Type: GB,, DIN, ANSI, JIS standard flanges, dental mouth, clamps and so on.

Flange Standard: GB, HG, ANSL, JIS and other standards. (User-specified, please indicate the pressure level)

Manufacturing, testing standard: GB150 standard, or user-specified criteria.



Our advantage of China SS 304 multi media filter housing factory

 1.we can do the designs according to the customers'requirement

 2.we can open customers'own mould as per their reuirement

 3.we can offer you the high quality & reasionalble price

 4.we can offer your a good after-sell service ,3‰-5‰ spare unit

 5.we have strong professinal design team

 6. promptly delivery. small order is welcome.



BONA WATER Factory view of China SS 304 multi media filter housing factory



The Exhibition Hall of China SS 304 multi media filter housing factory



The 2017 Aquatech Exhibition of China SS 304 multi media filter housing factory



The Certification of China SS 304 multi media filter housing factory



The half-products in plant of China SS 304 multi media filter housing factory



1.Q:Are you a factory or trading company?


   A:Yes, we are a manufacture with designing, manufacturing, marketing and exporting for more than 16 years.And our factory is located in Hangzhou,China. Welcome your coming to visit us!

2.Q:What products does your company offer by yourself?

   A:We are specialized in making stainless steel filter housing, such as mechanical filter housing/pressure filter housing, precision      filter housing/cartridge filter housing/security filter housing/sanitary filter housing, bag filter housing, stainless steel membrane housing, ion exchange filter housing, etc.

3.Q:You accept OEM ? Are customized products accepted?

A:Yes, we can manufacture according to your requirement

We are support any of your innovative idea and also will provide you the filtering scheme for your reference . Bona is your factory!



4.Q:What is the process to place an order ?

A:At first, you tell me which styles of products ( From our website or Send us your product's photos or the artwork ) you will need ? Second, If you need , we will provide you the details too ,as the technical parameters or the artwork for your approval . Third, After ensure the more details about the products ,we will quote you about it ,and if you accept ,PI will would like goes for you . Fourth, You need to make full payment or take 30% payment before production and 70% before shipping

5. Any discount possible if I place an order?



Yes. we have different price ranges (discounts) based on different order quantities. Please contact our sales for detailed price information.

6.How do you usually pack the exported goods?How long is the delivery time ?

  A:We usually use carton, then wooden box with pallet.

Different products and quantities have different procedures and different timing .We may promise that we can try our best to finish all of your orders within the shortest time. For more information, please contact us directly



7.Q: Why choose our company?

   A:

1.16 years experience in water treatment.

2.Excellent cooperation partner

3.Own an excellent technical team

4.Advanced R & D capability.

5.One-stop service.

6.We provide custom-made service.

7.All products will be tested strickly before export

8.We got ASME,CE,ISO9001:2008 certificate



         Cooperative brands

          PENTAIR (IN USA,ASIA,BRAZIL,INDIA,DUBAI)

          PARKER

8.Q:What’s your warranty?

A:Our warranty is 1 year. But normally, our machine can work 5 years before repair.
