Sanitary filter housing

[Return Home] [Go Back]

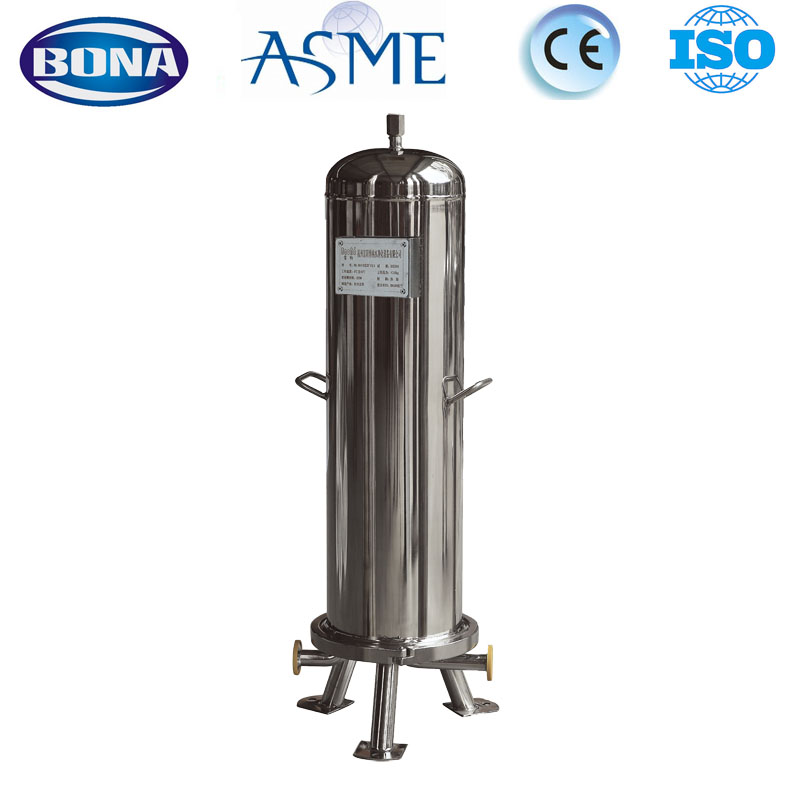

Sanitary filter housing

Product Abstract:

Sanitary filter housing
1.17 Years OEM manufacturer for Sanitary filter housing
2.ASME standard Stainless steel Sanitary filter housing
3.SS304/316L Sanitary filter housing for liquids for Industry water treatment System

Product Description

The Description of sanitary filter housing

Our sanitary series cartridge housings have been designed for the most critical and demanding applications requiring purity and durability. The maximum design working pressure is 150 P.S.I. (10 bar) @ 225°F (107°C). The S series is standard with sanitary ferrules for the inlet and outlet with ½” sanitary ferrules for the drain and vent. The standard gasket material is Silicone but other material options include EPR, viton, buna, and PTFE. Please refer to our ordering guide for a complete list of model, length, closure, style, connection, finish, vent and drain options or contact one of our technical specialists for help.


The Features of sanitary filter housing

Designed for critical applications requiring high purity and durability

All wetted parts are 316L Stainless Steel electro-polished with standard 25RA internal finish and 32RA external finish.

In-line single cartridge design

Tri-clamp closure for easy cartridge change-outs

Ideal for vent applications

T-style housing design

Available for 1 through 21 cartridges

Tri-clamp closure for single cartridge housing

Swing bolt closures for rugged design and secure sealing

Removable bottom seal plate allows ease of cleaning

Available with 226 or 222 style cartridge connectors

1 ½” TC Gauge Port and ½” TC vent and drains are standard

Optional Sanitary Twist Valve is available for easy sampling of process fluid


Technical Parameters of sanitary filter housing
1.Seal type: O-rings and flat gasket

2. Sealing material: nitrile rubber(chemitum), silicone, fluorine rubber, usually use silicon rubber seal

3. Filter interface: the threaded, clamp(hoop),  DIN, ANSI, JIS standard flange

4. Filtration accuracy: 1μm - 100 μm

5. Body material: SS304/SS 316L

Working Principle of sanitary filter housing

Precision filter, also known as the security filter/cartridge filter. Generally, it is setted before the pressure vessel, to remove the turbidity particles of 1 degree above, to meet the requirements of further processes for water; Sometimes it also is setted at the end of the whole water treatment system to avoiding the small particles (such as a broken resin) into the water.


Application of sanitary filter housing

1. Food industry:fine filter of space water, mineral water,beverages, liquor clarification and filtration process;

2. Pharmaceutical industry: sterile water, oral, infusion and injection water treatment;

3. Chemical industry: organic solvents, esters, alcohols, acids, alkalis and other chemicals, oils purification ;

4. Oil industry: oil field water injection preparation and so on ;

5.  Environmental protection, electroplating wastewater, printing waste, pharmaceutical waste and other industrial wastewater treatment;

6. Seawater, brackish water desalination water treatment, hotels, apartments water treatment ;

7. Precision filter is often used as security filter for electrodialysis, ion exchange, security filters reverse osmosis devices.


1.Are you a factory or trading company?
Yes, we are a manufacture with designing, manufacturing, marketing and exporting.


2.What products does your company offer by yourself?

We are specialized in making stainless steel filter housing, such as mechanical filter housing/pressure filter housing, precision filter housing/cartridge filter housing/security filter housing/sanitary filter housing, bag filter housing, stainless steel membrane housing, ion exchange filter housing, etc.


3.How do you usually pack the exported goods?

We usually use bubble bag, then wooden box with pallet.


4.Which machine should I choose?

It depends on your raw water quality and your requirements for permeate water.


5.What’s your warranty?

Our warranty is 1 year. But normally, our machine can work 5 years before repair.


Contact US!







Thanks for your visit and welcome to contact us if any requirement!
