Industrial filter housing

[Return Home] [Go Back]

Industrial filter housing

Product Abstract:

Industrial filter housings
1.ASME standard and CE certification Industrial for commercial and industrial applications
2.AS one of the leading OEM manufacturers with 17 years, offering wide variety Single and multi Industrial filter housing for all your industrial liquid filtration needs.
3.High quality Industrial grade Industrial filter housing for water and process industry

Product Description

Technical description of Industrial filter housing---Bag filter housings

Multi-Round Liquid Bag Housings effectively remove dirt,pipe scale,and other contaminants from process liquids.Quality construction and design assure clean effluent and protection for all down stream equipment.

The Operation Industrial filter housings(multi-bags filter housing)

Unfiltered liquid enters the housing above the filter bags or strainer baskets,fills the interior of the housing and continues through the bag or strainer basket.Solids are trapped inside the filter bags or strainers and easily removed when the housing is serviced.Our standard O-ring seal between the baskets and the housing ensures a positive seal to prevent bypass.

Features of Industrial filter housings(multi-bags filter housing)

1 Max flow rates up to 540ton/h

2 Two basket to 18 basket housing designs,depending upon the required surface area and volume of fluid to be filtered.

4. Low pressure drop

5 Swing bolts with bearing-assisted davit closure

6 EPDM,Viton,Buna seals-lid and basket

7 Differential,drain,and vent port.

8 SUS304 or 316L strainer basket.

9Accept #2-size filter bags.

Technical parameters of Industrial filter housings(multi cartridge filter housing)

Working pressure: 0.6 / 1.0 / 1.6Mpa

Body Material: Stainless steel (SUS304, SUS304L, SUS316, SUS316L).

Operating temperature: 5 ~ 40 ? (exceed 60 ? to be informed)

Design temperature: 5 ? -90 ?

Replace the pressure: 0.05Mpa-0.07MPA

Filter interface: flat compression, plug-in

Cylinder and base connection mode: quick opening, flanged

Filtration accuracy: 1μm ~ 100μm

Cartridge Quantity: 1 core to 160 cores

Cartridge filter Length: 10 "~ 40"

Seal type: O-ring or flat washer

Surface finish: Sandblast, mirror electrolytic polishing.

Sealing material: nitrile rubber, silicone, Viton, standard configuration for the silicone seal.

Interface Type: GB,, DIN, ANSI, JIS standard flanges, dental mouth, clamps and so on.

Flange Standard: GB, HG, ANSL, JIS and other standards. (User-specified, please indicate the pressure level)

Manufacturing, testing standard: GB150 standard, or user-specified criteria.

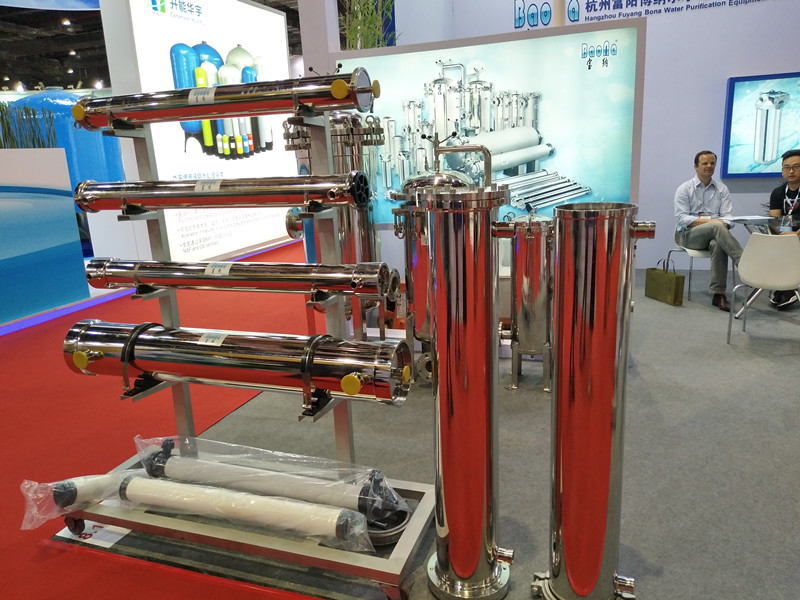

The Aquatech Exhibition of Industrial filter housing

Our advantage of Industrial filter housings(multi cartridge filter housing)

 1.we can do the designs according to the customers'requirement

 2.we can open customers'own mould as per their reuirement

 3.we can offer you the high quality & reasionalble price

 4.we can offer your a good after-sell service ,3‰-5‰ spare unit,

 5.we have strong professinal design team

 6. promptly delivery. small order is welcome.


After sale service & promise BONA WATER Company:

 1,supply oem&odm order,independent  Q.C department ,3 times of quality checking,

 2.100% percent of pass before shipping

 3.One year of warranty

The package of Industrial filter housing

The business line of BONA WATER Company

Stainless steel filter housings,bag filter housing,cartridge filter housing,micro filter, SS water tank, Stainless steel tank, water softener, industrial water filter, RO and UF membrane housing, RO system, Accessories(valve, distributor,etc.)

We have 16 years OEM Experience, with ASME ,ISO 9001:2008, CE certificate of corporation management authentication.


BONA WATER Company Mainly exported market

American, Southeast Asia,South Africa, Mid East, Eastern Asia, Western Europe, ect.


BONA WATER Company have attended the Exhibition each year

1. AQUATECH CHINA 2016,Dubai Wetex 2016,Vietnan Water Exhibition

2.2015 USA Water Exhibition and Thailand Water Exhitition 2015

3.AQUATECH CHINA 2014,Dubai Wetex 2014

4. AQUATECH CHINA 2013, India water Exhitition, Aquatech Netherlands exhibition 2013

5. AQUATECH CHINA 2012,Dubai Wetex 2012

6. AQUATECH CHINA 2011,Dubai Wetex 2011

1.Q:Are you a factory or trading company?

   A:Yes, we are a manufacture with designing, manufacturing, marketing and exporting for more than 16 years.And our factory is located in Hangzhou,China. Welcome your coming to visit us!

2.Q:What products does your company offer by yourself?

   A:We are specialized in making stainless steel filter housing, such as mechanical filter housing/pressure filter housing, precision      filter housing/cartridge filter housing/security filter housing/sanitary filter housing, bag filter housing, stainless steel membrane housing, ion exchange filter housing, etc.

3.Q:You accept OEM ? Are customized products accepted?

A:Yes, we can manufacture according to your requirement

We are support any of your innovative idea and also will provide you the filtering scheme for your reference . Bona is your factory!


4.Q:What is the process to place an order ?

A:At first, you tell me which styles of products ( From our website or Send us your product's photos or the artwork ) you will need ? Second, If you need , we will provide you the details too ,as the technical parameters or the artwork for your approval . Third, After ensure the more details about the products ,we will quote you about it ,and if you accept ,PI will would like goes for you . Fourth, You need to make full payment or take 30% payment before production and 70% before shipping

5. Any discount possible if I place an order?


Yes. we have different price ranges (discounts) based on different order quantities. Please contact our sales for detailed price information.

6.How do you usually pack the exported goods?How long is the delivery time ?

  A:We usually use carton, then wooden box with pallet.

Different products and quantities have different procedures and different timing .We may promise that we can try our best to finish all of your orders within the shortest time. For more information, please contact us directly


7.Q: Why choose our company?


1.16 years experience in water treatment.

2.Excellent cooperation partner

3.Own an excellent technical team

4.Advanced R & D capability.

5.One-stop service.

6.We provide custom-made service.

7.All products will be tested strickly before export

8.We got ASME,CE,ISO9001:2008 certificate


         Cooperative brands



8.Q:What’s your warranty?

A:Our warranty is 1 year. But normally, our machine can work 5 years before repair.

Contact US!







Thanks for your visit and welcome to contact us if any requirement!
